For electric vehicle (EV) owners who primarily rely on Level 1 charging at home, the option to use a NEMA 14-50 outlet can provide a convenient alternative when visiting locations equipped with such outlets. This type of outlet is often found in recreational vehicles (RVs).
Is It Safe to Charge an EV with a NEMA 14-50 Outlet?
When considering the use of a NEMA 14-50 outlet for charging, lowering the charging current to around 24A is recommended to significantly reduce the risk of overheating or overloading the outlet. This adjustment helps ensure a safer charging experience.
To further enhance safety, it’s advisable to use a torque screwdriver to properly tighten terminal connections. Regular checks of the connections for temperature after an hour of charging can help confirm that they are not overheating.
Finding a Certified Portable Charger
One challenge for EV owners is locating a certified portable charger with adjustable current settings. Many regulations prevent these chargers from being configured for varying circuit capacities. However, unofficial portable chargers can be used, and there are no restrictions against manually setting the charging rate below the specified limits.
Inspecting the RV Outlet Circuit
Before utilizing the RV outlet, it is important to check the circuit breaker associated with it. If the breaker is rated for 50A, it is safe to draw up to 40A. Ensuring that the wiring in the circuit is rated for at least 50A is crucial for handling this load. The quality of the outlet may impact its ability to support high currents, but if the vehicle’s maximum charging current is around 32A, it should not pose a significant issue.
It is advisable to begin charging at the highest current that the vehicle can handle. After 30 minutes to an hour, checking both the outlet and the plug is recommended. They should be warm but not excessively hot. If overheating occurs, this indicates a potential problem. Turning off the breaker and inspecting the outlet can help ensure that all connections are secure and that there is no thermal damage present.

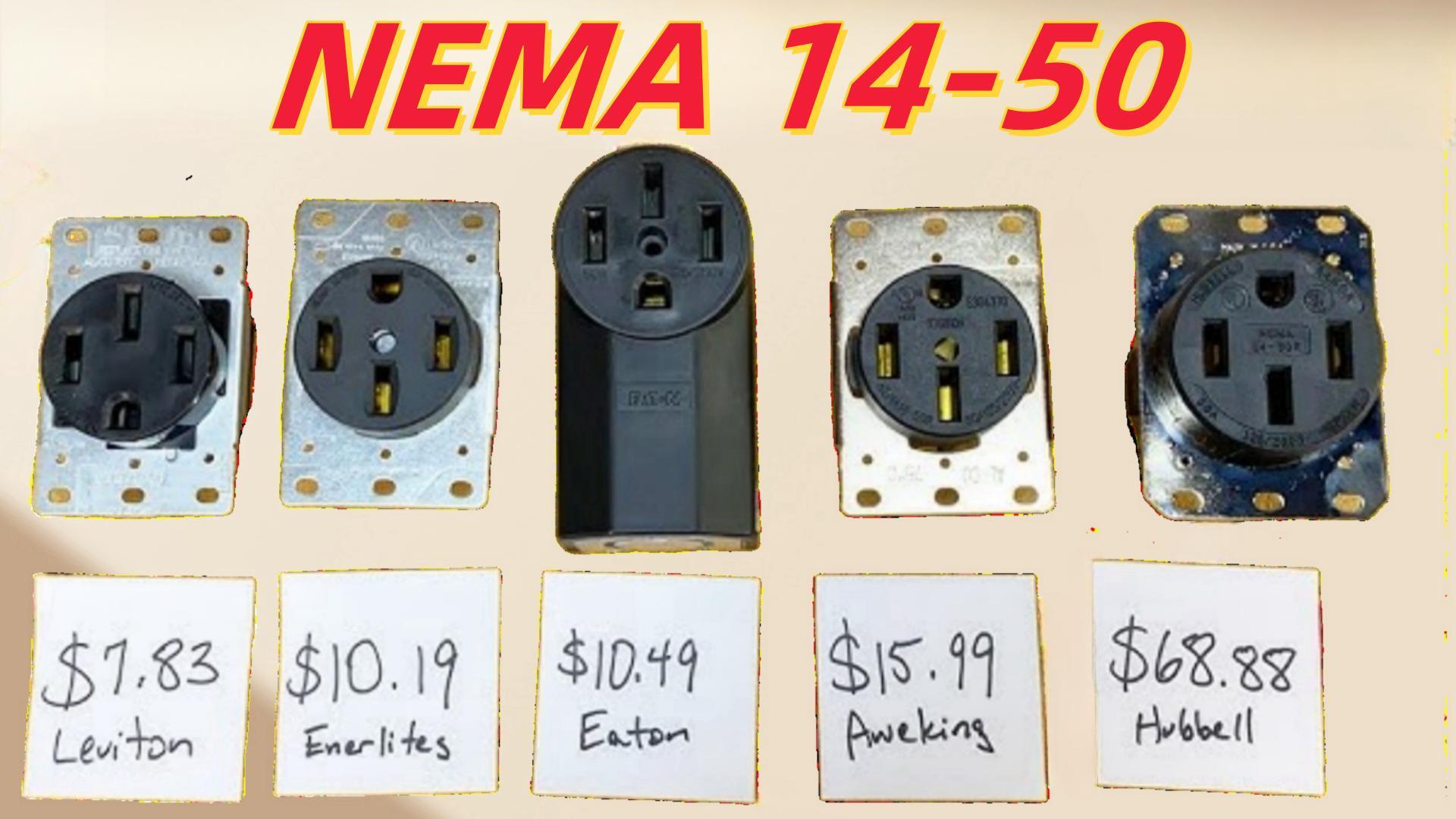

It is worth noting that there have been instances of low-quality outlets failing when used improperly at high currents. Investing in a high-quality outlet, such as a reputable brand, can help prevent such issues.
While using a NEMA 14-50 outlet for EV charging is feasible, taking the necessary precautions can ensure a safe and efficient charging experience. Although this charging option may only be needed occasionally, proper preparation can facilitate a smooth charging process when the situation arises.
